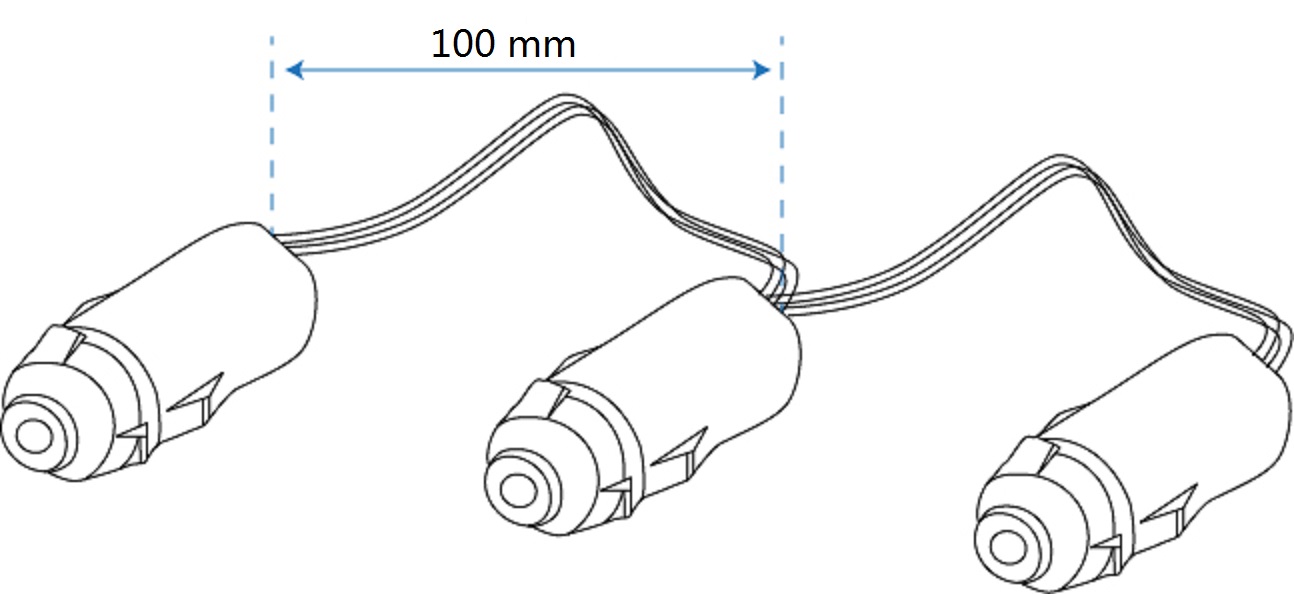

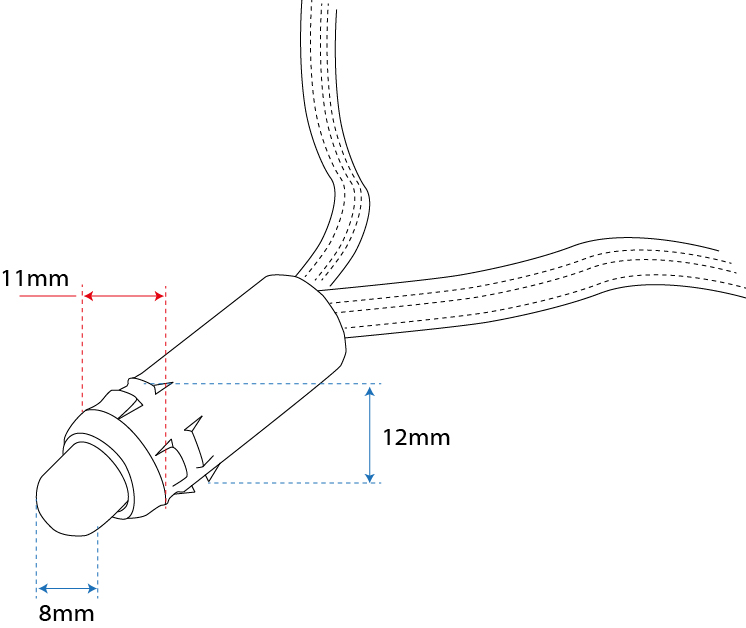

Drawing:
Application:
Specification
Features:
- For 12mm installing hole
- DC5V
- 115 Viewing angle
- Certificate: CE,RoHS
- Warranty: 2 years
- Each unit can be cut
- 1pcs 1903 IC per unit
- PVC Cover &Epoxy
Email: sales@nvleds.com
Product > Perforated Lighting > 12mm Pixel Perforated Lighting
Suitable for cove and contour lighting etc. in KTV, hotel, shopping mall, home, cabinet and so on
|
Part No |
P12D |
|
Dimension |
Φ12mm |
|
LED No. |
1 |
|
IC No. |
1 |
|
Voltage |
DC5V |
|
View angle |
115 |
|
Current (mA/pcs) |
60 mA |
|
Power (w/pcs) |
0.3 W |
|
Color |
Pixel |
|
Controller |
SD card controller |
|
Operating Temperature |
-25℃- 60℃ |
|
Storage Temperature |
-30℃- 60℃ |
|
IP |
65 |
