Product > Power Supply Series
Features:
- Wide voltage input: AC100-250V
- PW series is waterproof IP 67 Grate,
- PN series is non-waterproof
- Working temperature range: -30℃- 50℃
- Have Short circuit and Over load protection
- Certificate: CE
- Warranty: 3years

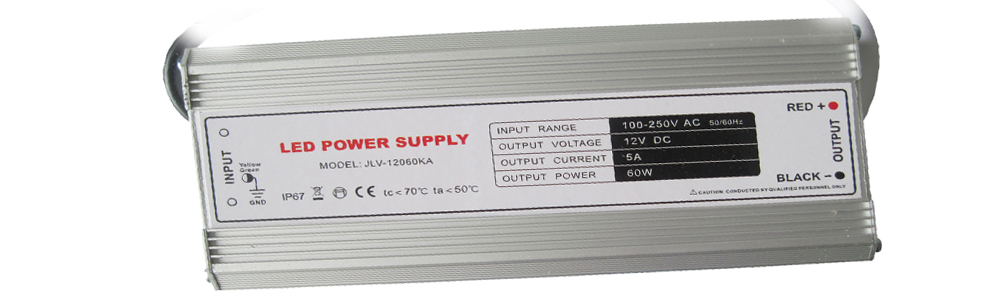

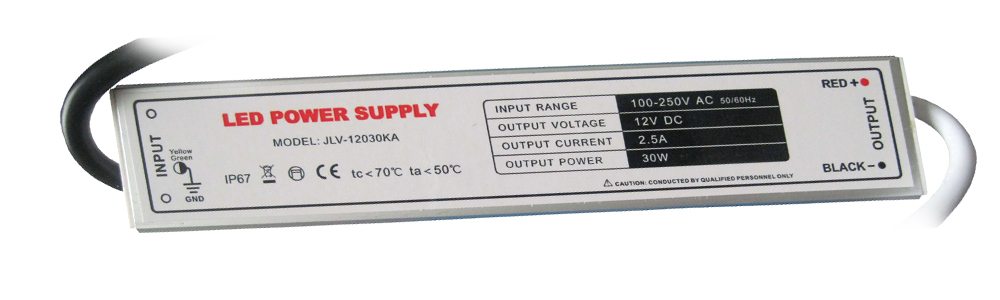

PW Series

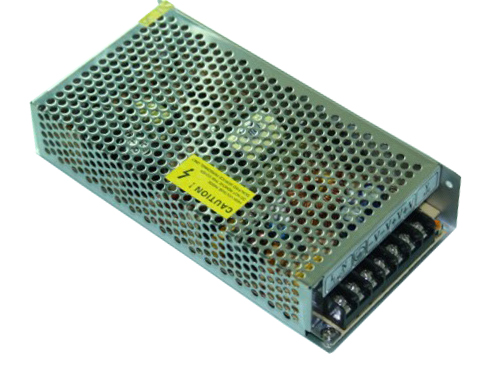

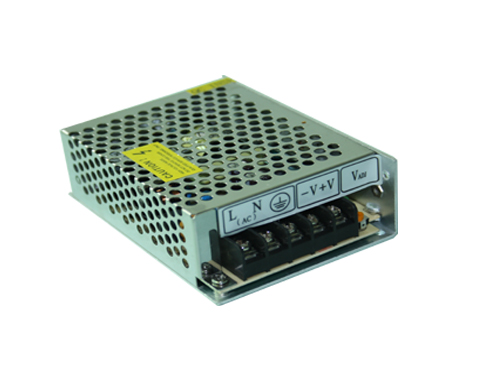

PN Series
Specification
|
Model No. |
Input Voltage |
Output Voltage |
Current |
Power |
Size(mm) |
Application |
|
PW12-20 |
AC100-250V |
DC12V |
1.67A |
20W |
35*25*18 |
Outdoor |
|
PW12-30 |
AC100-250V |
DC12V |
2.5A |
30W |
180*33*23 |
Outdoor |
|
PW12-60 |
AC100-250V |
DC12V |
5.0A |
60W |
152*71*45 |
Outdoor |
|
PW12-100 |
AC100-250V |
DC12V |
8.34A |
100W |
202*71.2*45 |
Outdoor |
|
PW12-150 |
AC100-250V |
DC12V |
12.5A |
150W |
242*72*45 |
Outdoor |
|
PN12-30 |
AC100-250V |
DC12V |
2.5A |
30W |
84*58*38 |
Indoor |
|
PN12-60 |
AC100-250V |
DC12V |
5.0A |
60W |
110*78*38 |
Indoor |
|
PN12-100 |
AC100-250V |
DC12V |
8.34A |
100W |
159*98*38 |
Indoor |
|
PN12-200 |
AC100-250V |
DC12V |
16.7A |
200W |
159*110*50 |
Indoor |
|
PN12-360 |
AC100-250V |
DC12V |
30A |
360W |
215*115*50 |
Indoor |
