Model No. |
Color |
Size(mm) |
Voltage |
Current |
Power |
|
M1A2X |
W,R,G,B,Y |
L27 X W8 X H4 |
DC12V |
20-30mA |
0.24-0.36W |
|

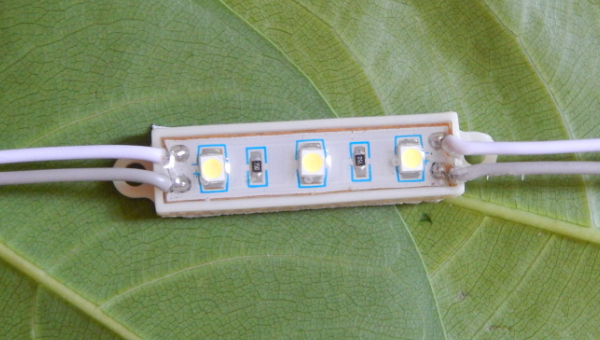

M1A3SX |
W,R,G,B,Y |
L40 X W11 X H4.3 |
DC12V |
20-30mA |
0.24-0.36W |
|

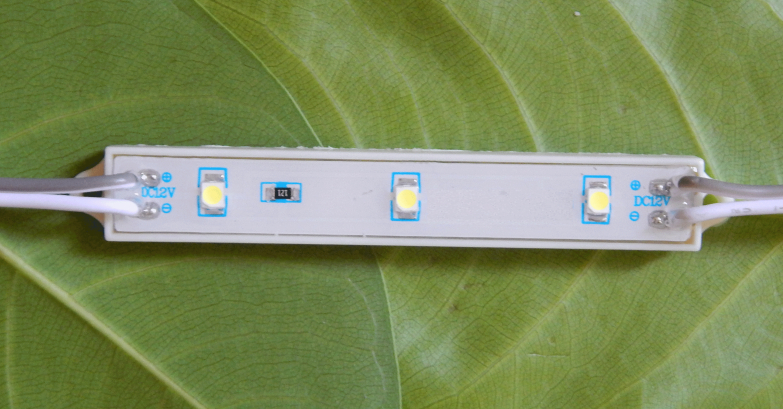

M1A3X |
W,R,G,B,Y |
L78 X W13 X H4.2 |
DC12V |
20-30mA |
0.24-0.36W |
Product > LED Sign Module > M1 Series > 3528SMD LED Module
M1 Series 3528SMD LED
Module
Applications:
Mini size module,
suitable for Mini channel letter, it is suitable for 4-8cm depth signage
Medium size
module, suitable for Medium channel letter, it is suitable for 6-12cm depth
signage
Big size module, suitable for big channel letter, it is suitable for 8-15cm depth signage
Features:
1.
2 and
3chip 3528SMD LED mounted
2.
Waterproof
with ABS housing&epoxy sealed.
3.
DC12V
4.
115
Viewing angle
5.
Certificate:
CE,RoHS
6.
Warranty:
3years
M1A2X M1A3SX M1A3X
Specification
