Product > LED Sign Module > M1 Series > RGB 5050SMD LED Module

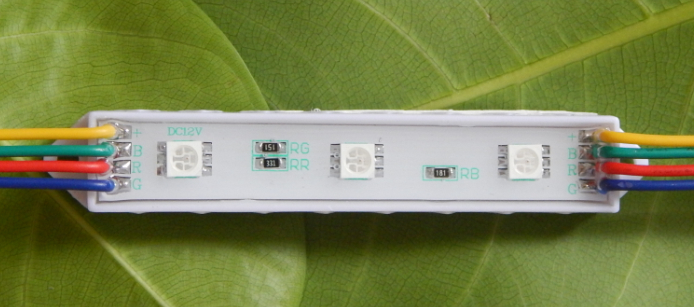

M1 Series RGB 5050SMD LED
Module
Features:
1.
3chip
RGB 5050SMD LED mounted
2.
Waterproof
with ABS and Aluminum housing&epoxy sealed.
3.
DC12V
4.
115
Viewing angle
5.
Certificate:
CE,RoHS
6.
Warranty:
3years

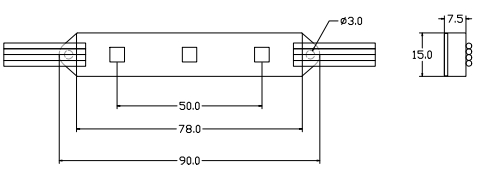

M1B-3RGBS

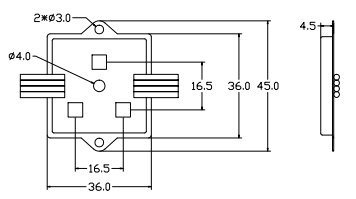

M1B-3RGB
Specification
|
Model No. |
M1B-RGB3S |
M1B-RGB3 |
|
Size(mm) |
L78 X W15 X H7.5 |
L36 X W36 X H4.5 |
|
Color |
RGB |
|
|
Working Voltage |
DC12V |
|
|
Beam Angle |
115 degree Viewing Angle |
|
|
Brightness(lm) |
R:6/ G:10/ B:3 |
|
|
Working Current(mA/pcs) |
60 |
|
|
Power(W/pcs) |
0.72 |
|
|
Operating Temperature |
-25℃- 60℃ |
|
|
Storage Temperature |
-30℃- 70℃ |
|
|
IP Grate |
IP 65 |
|
|
Weight |
14 g/pcs |
12 g/pcs |
