Product > Perforated Lighting > 9mm Perforated Lighting
Application:
Suitable for 2-5cm light spacing of perforated channel letter and advertising signage.
Features:
1. For 9mm installing hole
2. Waterproof with PVC
overmolded housing, IP 65.
3. DC5V
4. 115 Viewing angle
5. Certificate:
CE,RoHS
6. Warranty: 2years
7. Each led can be cut

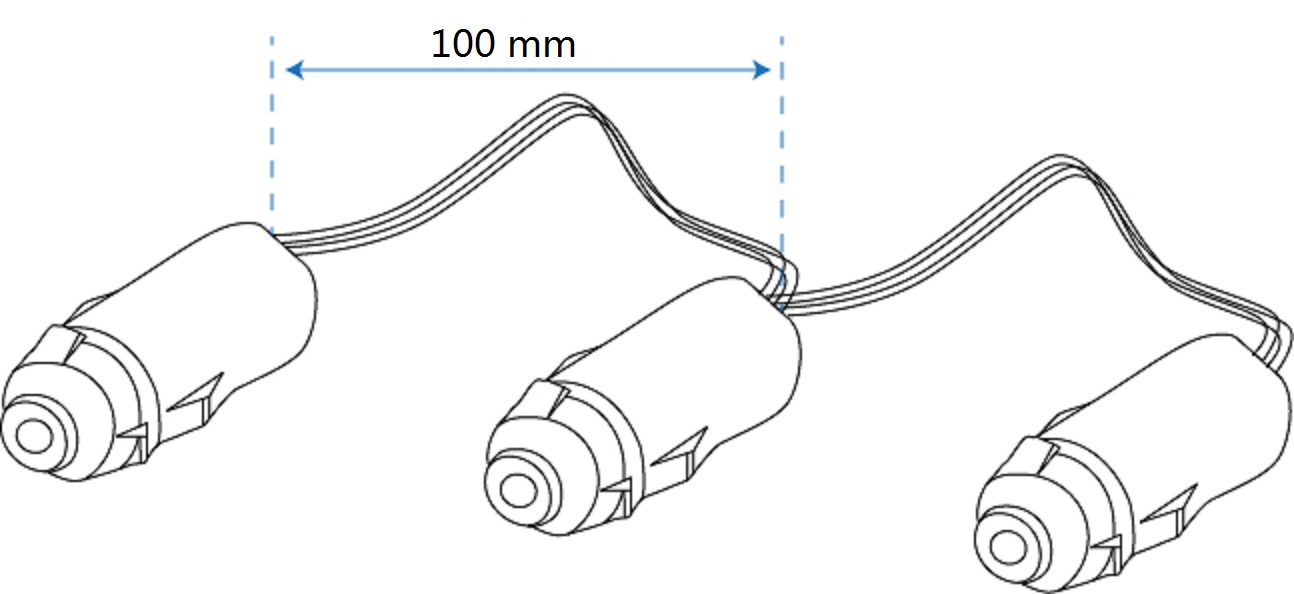

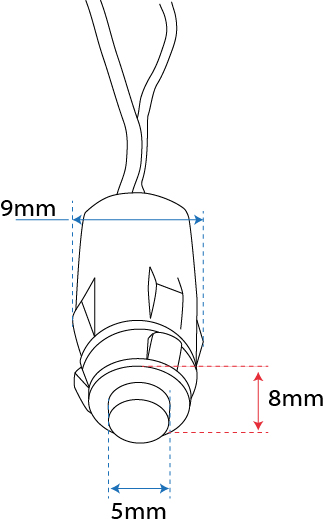

Drawing:
Specification
|
Model No. |
P9W |
P9R |
P9G |
P9B |
P9Y |
|
Color |
W |
R |
G |
B |
Y |
|
Color Temperature(K) Wavelength(nm) |
3000/6000/9000 |
620-625 |
525-530 |
465-470 |
585-590 |
|
Working Voltage |
DC5V | ||||
|
Beam Angle |
115 degree Viewing Angle | ||||
|
Brightness(lm) |
3 |
1.5 |
2.5 |
1 |
1.5 |
|
Working Current(mA/pcs) |
30 |
30 |
30 |
30 |
30 |
|
Power(W/pcs) |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
|
Operating Temperature |
-25℃- 60℃ | ||||
|
Storage Temperature |
-30℃- 70℃ | ||||
|
Weight |
3 g/pcs | ||||
|
IP Grate |
IP 65 | ||||
