Product > Perforated Lighting > Pixel Dot
Specification

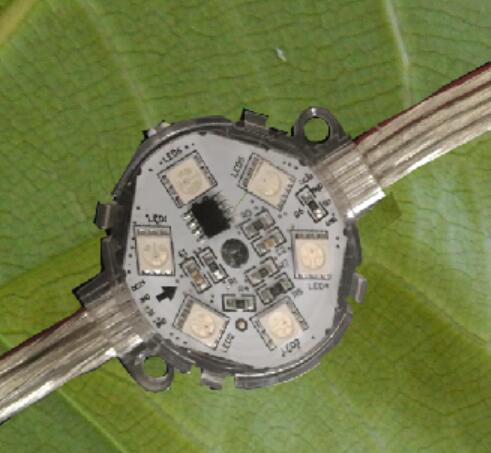

PD40-6D
Email: sales@nvleds.com
PD
Series RGB 5050SMD pixel dots
Features:
- RGB 5050SMD LED mounted, 3leds/pcs or 6leds/pcs
- DC12V for 3leds, DC24V for 6leds
- 115 Viewing angle
- Certificate: CE,RoHS
- Warranty: 2 years
- Each unit can be cut
- 1pcs 1903 IC per unit
- PVC Cover &Epoxy

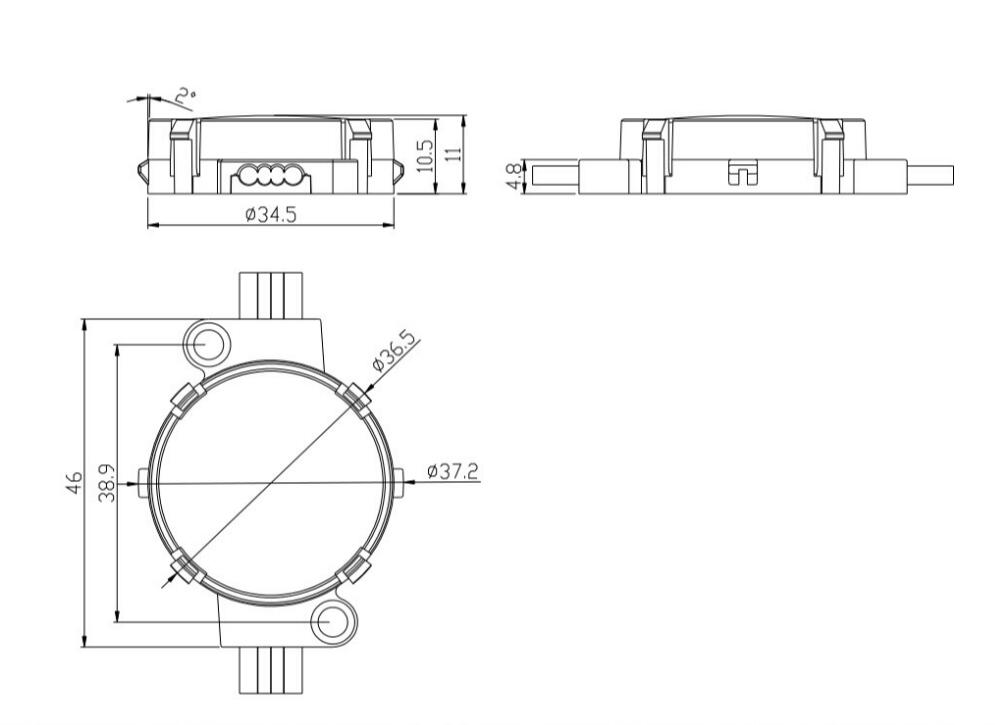

PD35-3D

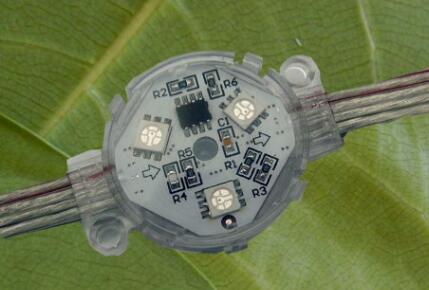

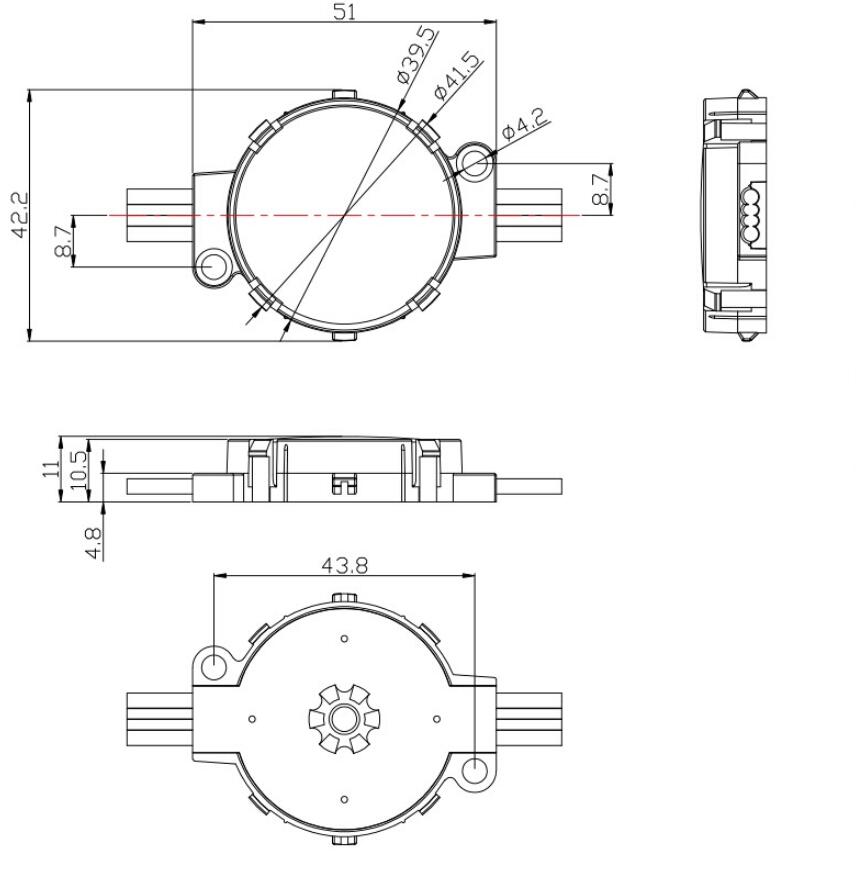

PD40-3D
| Part No | PD35-3D | PD40-3D | PD40-6D |
| Dimension | Φ35mm | Φ40mm | Φ40mm |
| LED No. | 3 | 3 | 6 |
| IC No. | 1 | 1 | 1 |
| Voltage | DC12V | DC12V | DC24V |
| View angle | 115 | 115 | 115 |
| Current (mA/pcs) | 60 mA | 60 mA | 60 mA |
| Power (w/pcs) | 0.72W | 0.72W | 1.44W |
| Color | Pixel | Pixel | Pixel |
| Controller | SD card controller | SD card controller | SD card controller |
| Operating Temperature |
-25℃- 60℃ | ||
| Storage Temperature | -30℃- 60℃ | ||
| IP | 65 | ||
